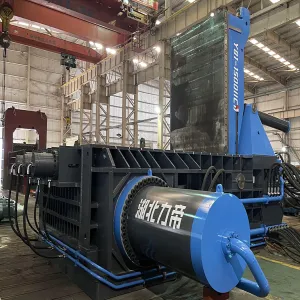

Our hydraulic balers (630-1600T) combine robust compression with energy efficiency, featuring smooth hydraulic operation and low maintenance. Flagship 1000/1500T models with dual cylinders
process entire vehicle cabins directly. The series offers reliable performance across industrial applications with customizable 630-1600T configurations.

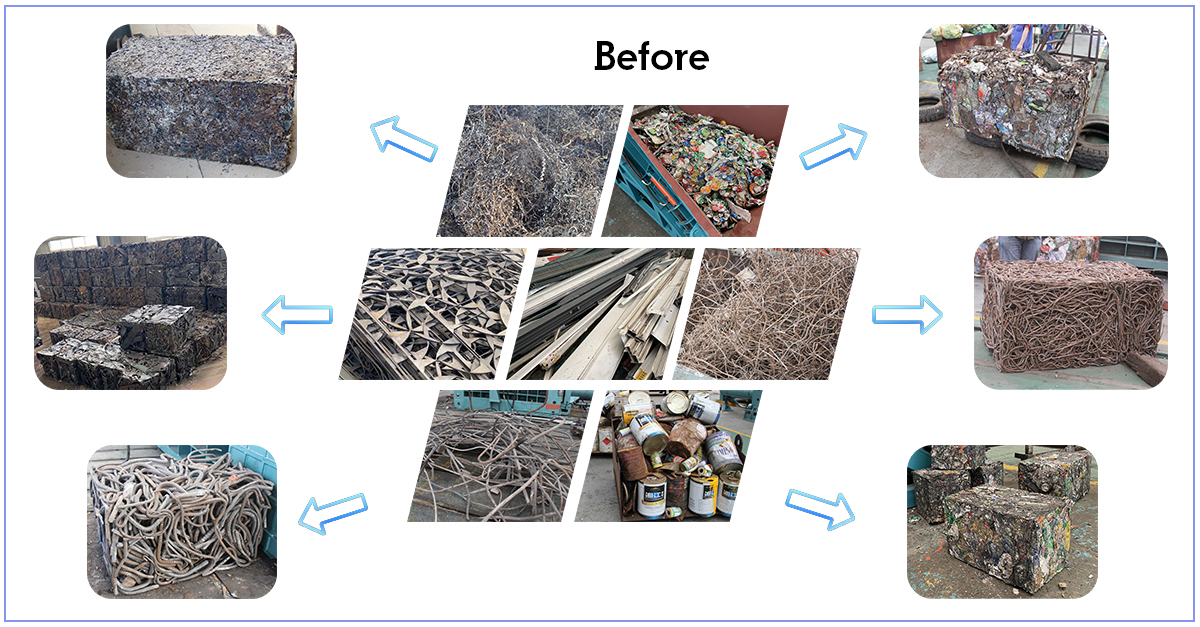

Applications: Features:
1. stainless steel scrap 1. Available in capacities from 630 to 1600 tonnes
2. Color steel sheet scrap 2. Full-hydraulic system: manual/PLC control options
3. Cold-rolled steel sheet scrap 3. Multi-ejection options: Tumble-out / Side-push / Front-push package discharge
4. Aluminum scrap trimmings/can scrap 4. HARDOX (Sweden)/QUAAD (Belgium) steel delivers maximum wear-resistant durability

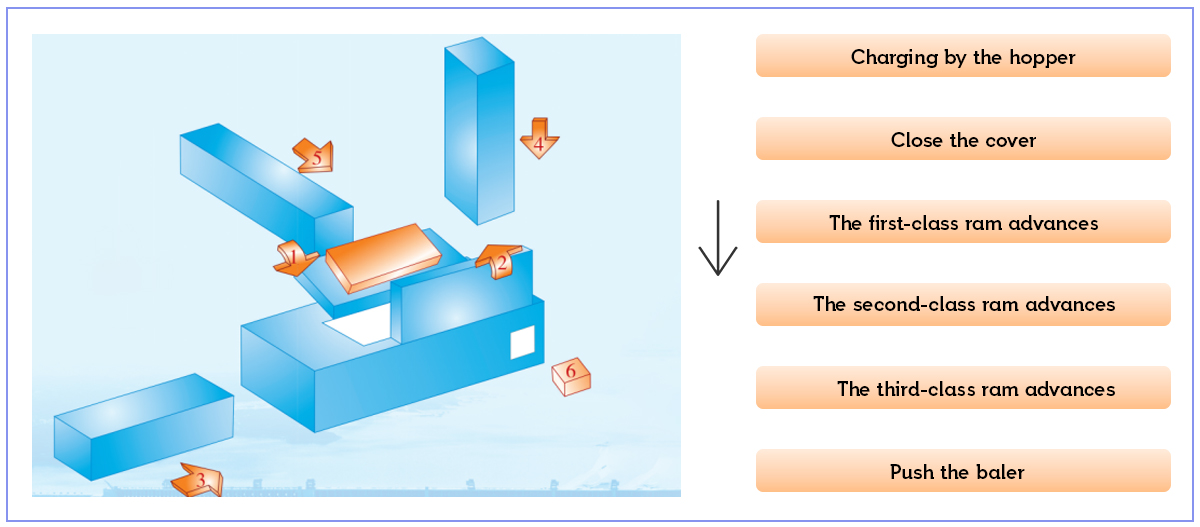

Product Process Flow Diagram:

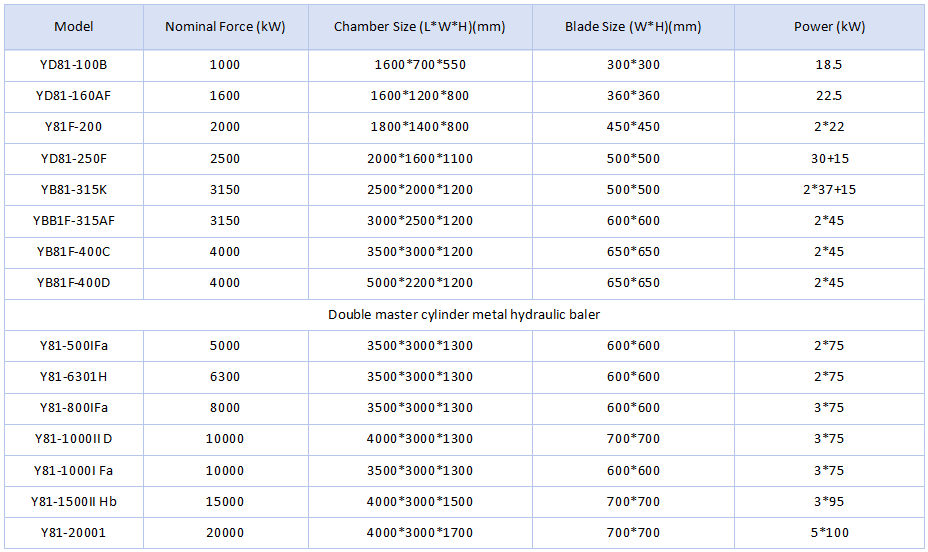

Product Parameters:
| Model | Nominal Force (kW) | Chamber Size (L*W*H)(mm) | Blade Size (W*H)(mm) | Power (kW) |
|---|---|---|---|---|
| YD81‑100B | 1000 | 1600*700*550 | 300*300 | 18.5 |
| YD81‑160AF | 1600 | 1600*1200*800 | 360*360 | 22.5 |
| Y81F‑200 | 2000 | 1800*1400*800 | 450*450 | 2*22 |
| YD81‑250F | 2500 | 2000*1600*1100 | 500*500 | 30+15 |
| YB81‑315K | 3150 | 2500*2000*1200 | 500*500 | 2*37+15 |
| YBB1F‑315AF | 3150 | 3000*2500*1200 | 600*600 | 2*45 |
| YB81F‑400C | 4000 | 3500*3000*1200 | 650*650 | 2*45 |
| YB81F‑400D | 4000 | 5000*2200*1200 | 650*650 | 2*45 |
| Double master cylinder metal hydraulic baler | ||||
| Y81‑500IFa | 5000 | 3500*3000*1300 | 600*600 | 2*75 |
| Y81‑630IH | 6300 | 3500*3000*1300 | 600*600 | 2*75 |
| Y81‑800IFa | 8000 | 3500*3000*1300 | 600*600 | 3*75 |
| Y81‑1000IID | 10000 | 4000*3000*1300 | 700*700 | 3*75 |
| Y81‑1000IFa | 10000 | 3500*3000*1300 | 600*600 | 3*75 |
| Y81‑1500IIHb | 15000 | 4000*3000*1500 | 700*700 | 3*95 |
| Y81‑2000I | 20000 | 4000*3000*1700 | 700*700 | 5*100 |

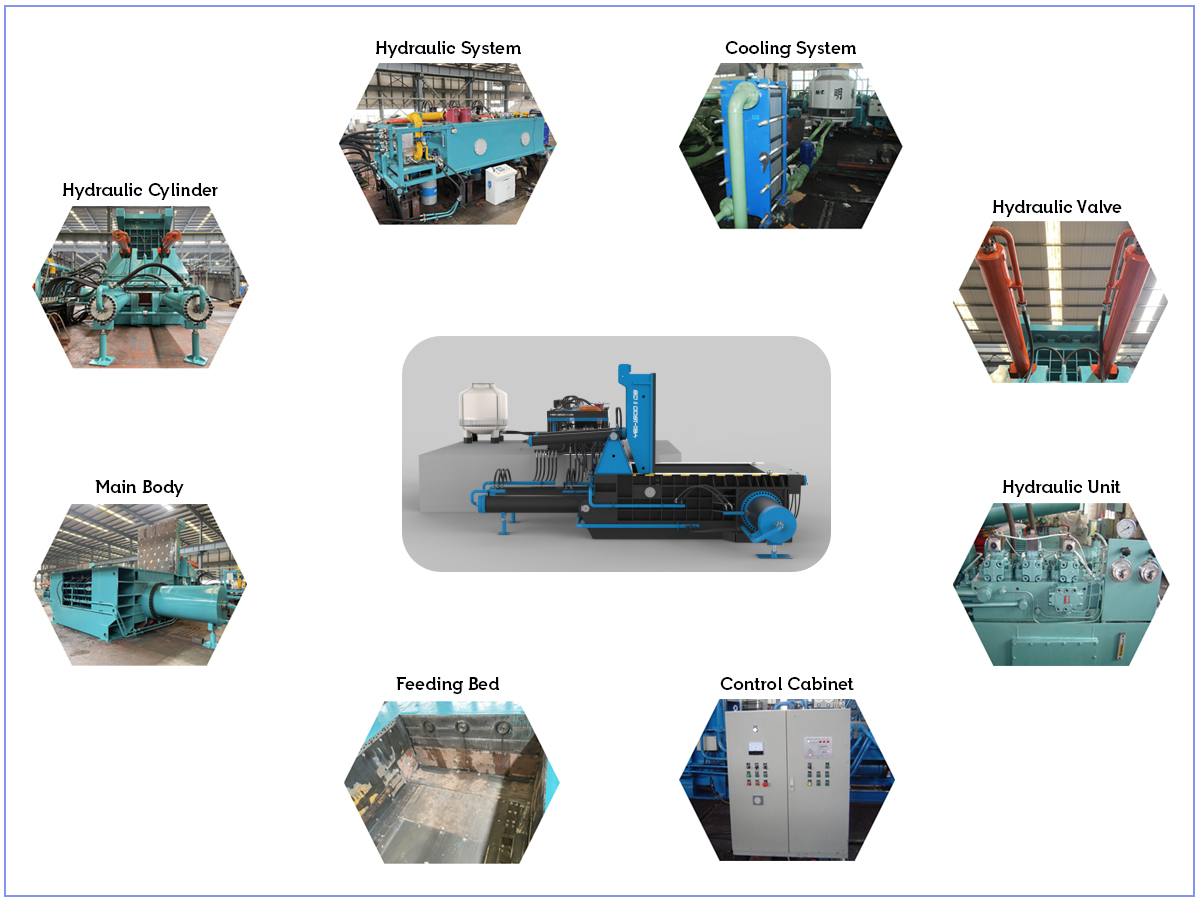

Product Components:

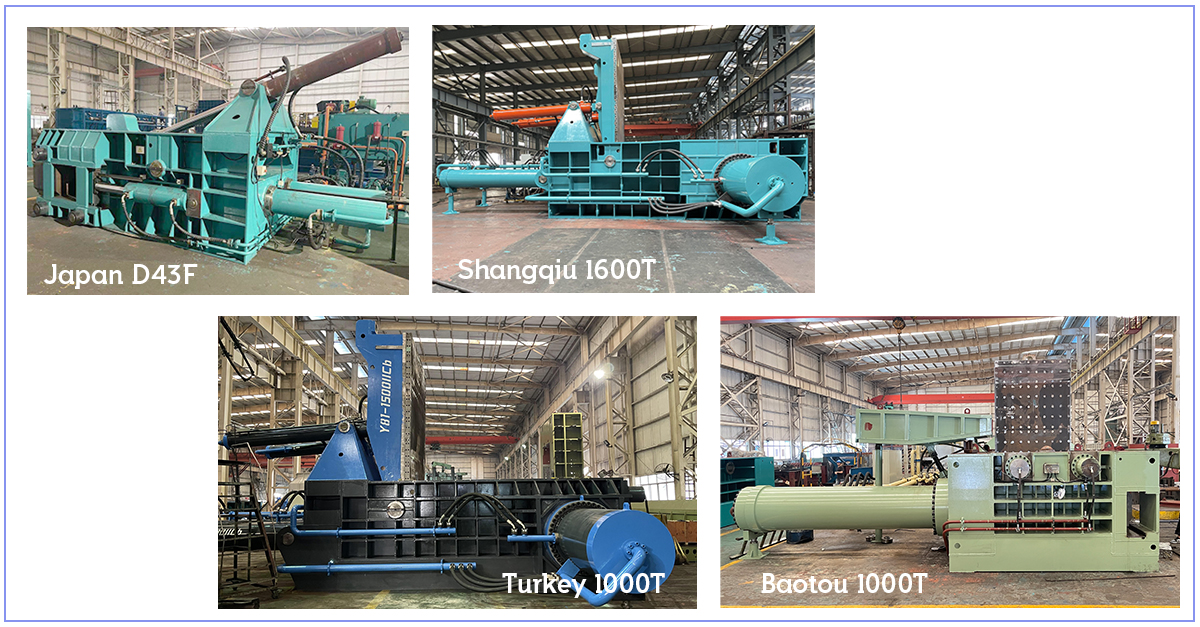

Case Study:
